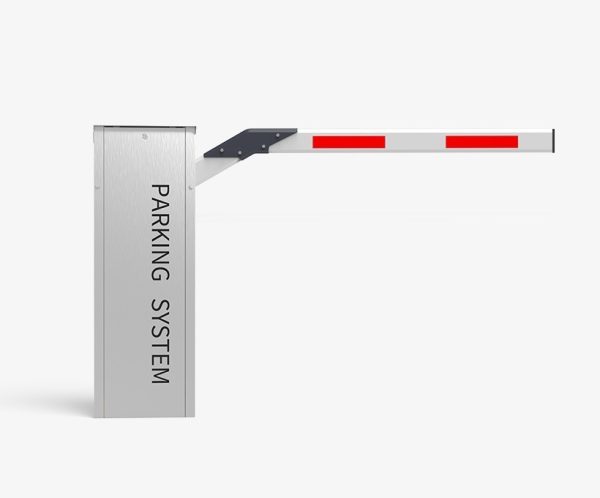

boom barrier special servo motor 304 stainless steel barrier gate

$530.00

boom barrier special servo motor 304 stainless steel barrier gate 2.0mm thickness, suitable for coastal areas, Or scenes that are affected by the harsh environment, anti-corrosion, anti-rust, and never fade!

Category:
Working Temperature-30℃~+70℃-30℃~+70℃
Power Supply24/100/240VAC, 50/60Hz24/100/240VAC, 50/60Hz
Open/close Speed0.9 Sec -8 sec (Adjustable)0.6 Sec-6 sec (Adjustable)
Rated Power200W400W
Driving MethodServo motorServo motor
Humidity≤90%≤90%
Remote Control Distance≤100m (open, sunny weather)≤100m (open, sunny weather)
Protection GradeIP54IP54
Motor No-load speed3000r/min3000r/min
Max Boom Length3m-6m2.5m

 1. Open and close speed adjustable
2. Arm direction Left and Right can change easily
3. When power off, manual open and close arm, and lock itself.
4. Wireless remote
5. Photocell port output
6. Loop detector anti-collision port output
7. Open and close control input
8. 12V traffic light output
9. Traffic light signal output
10. Open and close the limit signal output
11. Counting (fleet) input
12. 24V battery input port
13. Delay close arm function(1-300 sec. Adjustable)
14. Open and close arm speed deceleration function
15. One-key setting arm type with corresponding speed
16. arm auto-reverse function ( Force adjustable)
17. Anti-collision alarm function (additional sensors and alarms are required)
18. RS485 communication output
19. Automatic arm lift function when power off (need to add power storage module)

wonsun barrier gate

wonsun barrier gate

wonsun barrier gate

wonsun barrier gate
