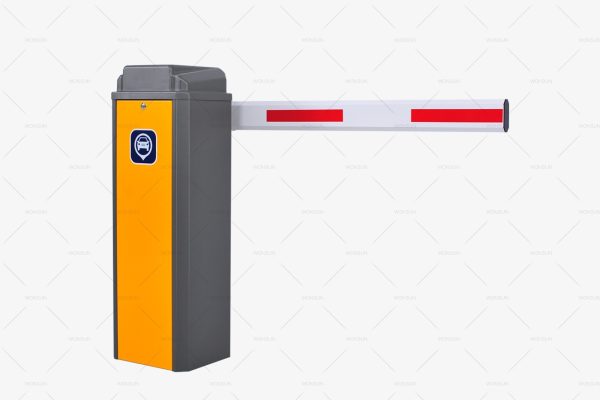

boom barrier 4TH Generation DC brushless motor barrier gate

$500.00

WONSUN 1nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, compact structure. High precision, high consistency, and standardization.

And use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat, small penetration, precise limit, etc.,

Category: Tag:

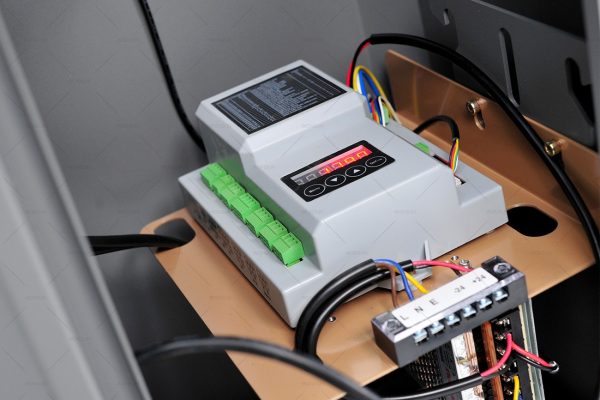

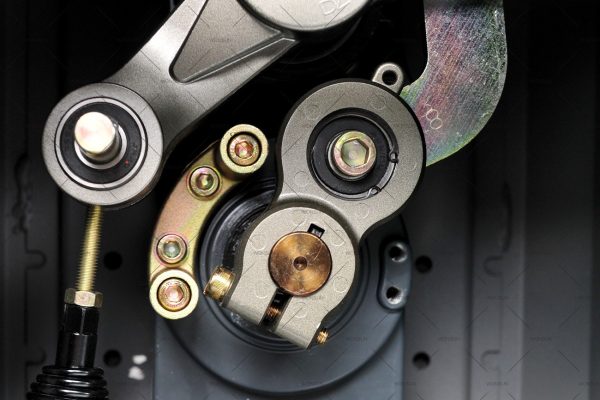

WONSUN 1nd generation servo motor gate adopts integrated design and mold manufacturing with international leading technology, and compact structure. High precision, high consistency, and standardization. And use planetary reducer transmission, high efficiency, long life, no oil leakage, no blocking, low noise the motor adopts 24V permanent magnet rare earth synchronous servo motor, small size, low power consumption, large torque, wide speed regulation, no heat, small penetration, precise limit, etc., using a digital signal processor(DSP) As the control core, it can realize more complex algorithms, realize network and intelligence,(IPM) An internal integrated drive circuit can detect faults and display fault codes t quickly solve fault problems. The three-bar linkage design of the machine core makes the rapid rise and fall operation more stable using solar charging applications. It is suitable for unmanned occasions such as railway crossings, fire passages, oil stations, and mine tunnels. etc. without electricity, and fully realizes automatic operation control.

Product parameter

Working Temperature-35°C~+65°C
Power Supply24/100/240VAC ,50/60Hz
Open/close Speed1.5ec-6Sec(Adjustable)
Rated Power200W
Driving MethodDC Brushless Motor
Humidity≤90%
Remote Control Distance≤100m(open,sunny weather)
Protection GradeIP54
Motor No-load Speed2000r/min
Max Boom Lenght3m-6m

1. The operation speed can be adjusted(1.2sec to 4sec),(3sec to 8sec).
2. Arm direction can be quickly interchanged.
3. Barrier gate up &down signal relay switch output.
4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.
7. Count mode interface.
8. Arm swing out function,when the vehicle hit the barrier gate,
the arm can be swing out to avoid further damage on the vehicle
and barrier machine core.
9. High-sensitivity arm auto reverse function (intensity can be adjusted).
10. Parking system interface.
11. RS485 communication interface.
12. The backup battery interface.
13.Automatic arm lift function when power off
(need to add power storage module)

wonsun barrier gate

wonsun barrier gate

wonsun barrier gate

wonsun barrier gate

wonsun barrier gate

Working Temperature

-35°C~+65°C

Power Supply

24/100/240VAC ,50/60Hz

Open/close Speed

1.5ec-6Sec(Adjustable)

Rated Power

200W
