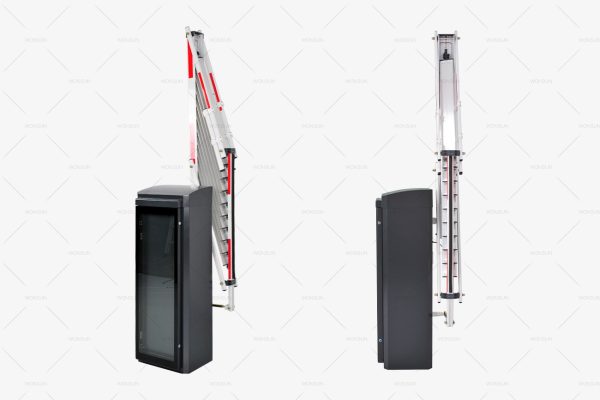

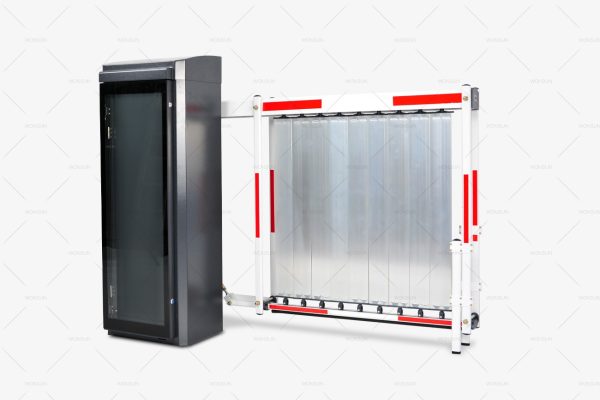

Wonsun boom barrier DC advertsing barrier gate

$635.00

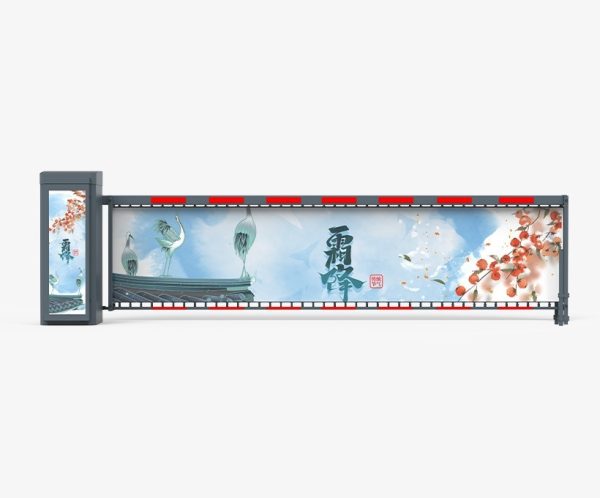

The advertising area is wider, suitable for residential and commercial sites, construction sites, which can be closed management, and can increase advertising benefits!

Category:

Description

Working Temperature-35°C~+65°C
Power SupplyDC24V
Open/close Speed3Sec-8Sec
Rated Power200W
Driving MethodDC Brushless Motor
Power Supply8.58A
Remote Control Distance≤30M,<100m(open,sunny weather)
Protection GradeIP54
Max Boom Length4.5m

The advertising area is wider, suitable for residential and commercial sites, construction sites, which can be closed management, and can increase advertising benefits!


FUNCTIONS
1. The operation speed can be adjusted(3sec to 8sec).
2. Barrier gate up &down signal relay switch output.
3. R&G Traffic light relay switch signal output.
4. External loop detector signal anti-smashing interface.
5. Infrared sensor signal anti-smashing interface.
6. Count mode interface.
7. Arm swing-out function, when the vehicle hits the barrier gate, the arm can be swung out to avoid further damage on the vehicle and barrier machine core.
8. High-sensitivity arm auto-reverse function (intensity can be adjusted).
9. Parking system interface.
10. RS485 communication interface.
11. The backup battery interface.
12. Automatic arm lift function when power off (need to add power storage module).



1. Advanced mechatronics Side-mounted design concept: structure compact, quickly assembly, easy maintenance.
2. Molding production: high precision, fast production efficiency, and guaranteed quality.
3. Worm-gear secondary variable speed transmission: high precision, long lifetime, motor wheel design, gate opening by manually when power off, no blocking, no oil leakage, large torque, low noise, can normally operation at the temperature of minus 35 degrees, etc.
4. DC brushless motor design: low consumption, high efficiency, no overheat, wide speed adjustment.
5. Hall limit: automatically detects the limit when power on without debugging, detecting the motor speed at all times and running at a constant speed and stable.
6. Curved triple connecting rod structure design concept, makes arm in the vertical and horizontal position, easy to adjust the arm balance, avoid to lift arm violently.
7. Advanced front and rear double-row spring balance design, better balance, not easy to cause spring failure problems.

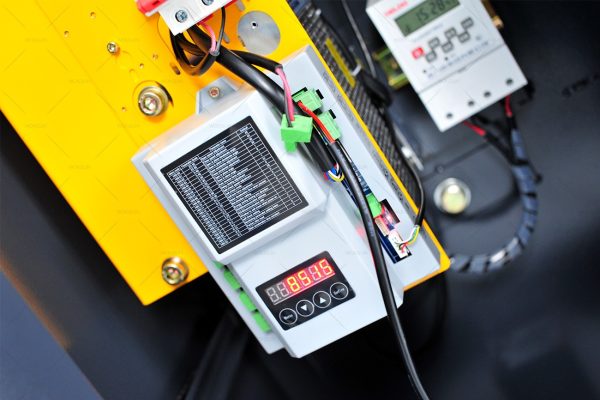

8. Advanced DC brushless controller: use integrated chip drive, fast processing speed, large memory, good control effect, powerful function, high degree of automation; 24V low voltage power supply, adapt to global voltage, safe and reliable.
