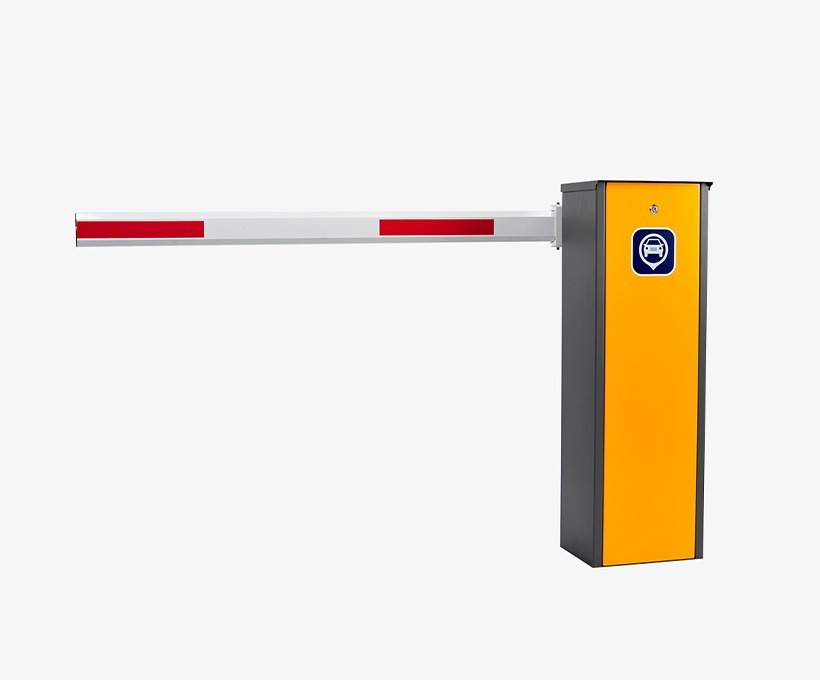

Wonsun Boom Barrier Gate Series with Unprecedented Power Introducing the 5th Generation DC Brushless Motor

(1 customer review)

Original price was: $300.00.Current price is: $239.00.

The DC boom barrier gate is the latest generation barrier gate product of Wonsun Company. It has all the advantages of previous products and has the advantages of price advantage and higher quality. This product is the main product of the company in the future.The Wonsun fifth-generation barrier gate is a highly mature product that has undergone five upgrades. It boasts the highest reliability, the best cost-effectiveness, and the most stable performance. It is suitable for any environment.

boom barrier gate product specifications:

Working Temperature-30°C~+70°C
Power SupplyDC24V
Open/close Speed1.5Sec-6Sec
Rated Power150W
Driving MethodDC Brushless Motor
Output Power56.8N.m
Remote Control Distance≤100m(open,sunny weather)
Protection GradeIP54
Motor No - load Speed1850r/min
Max Boom Length6m
wonsun boom barrier gate
wonsun boom barrier gate

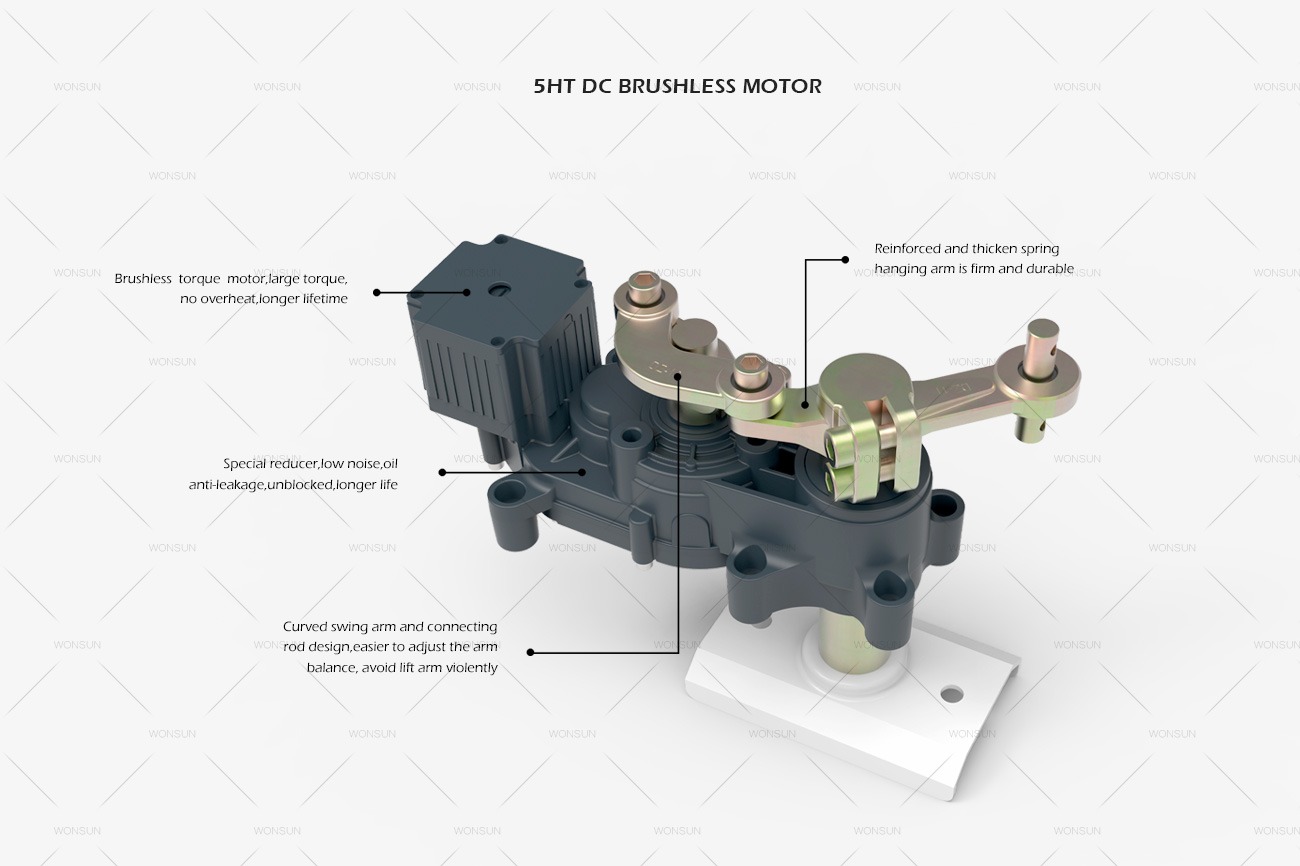

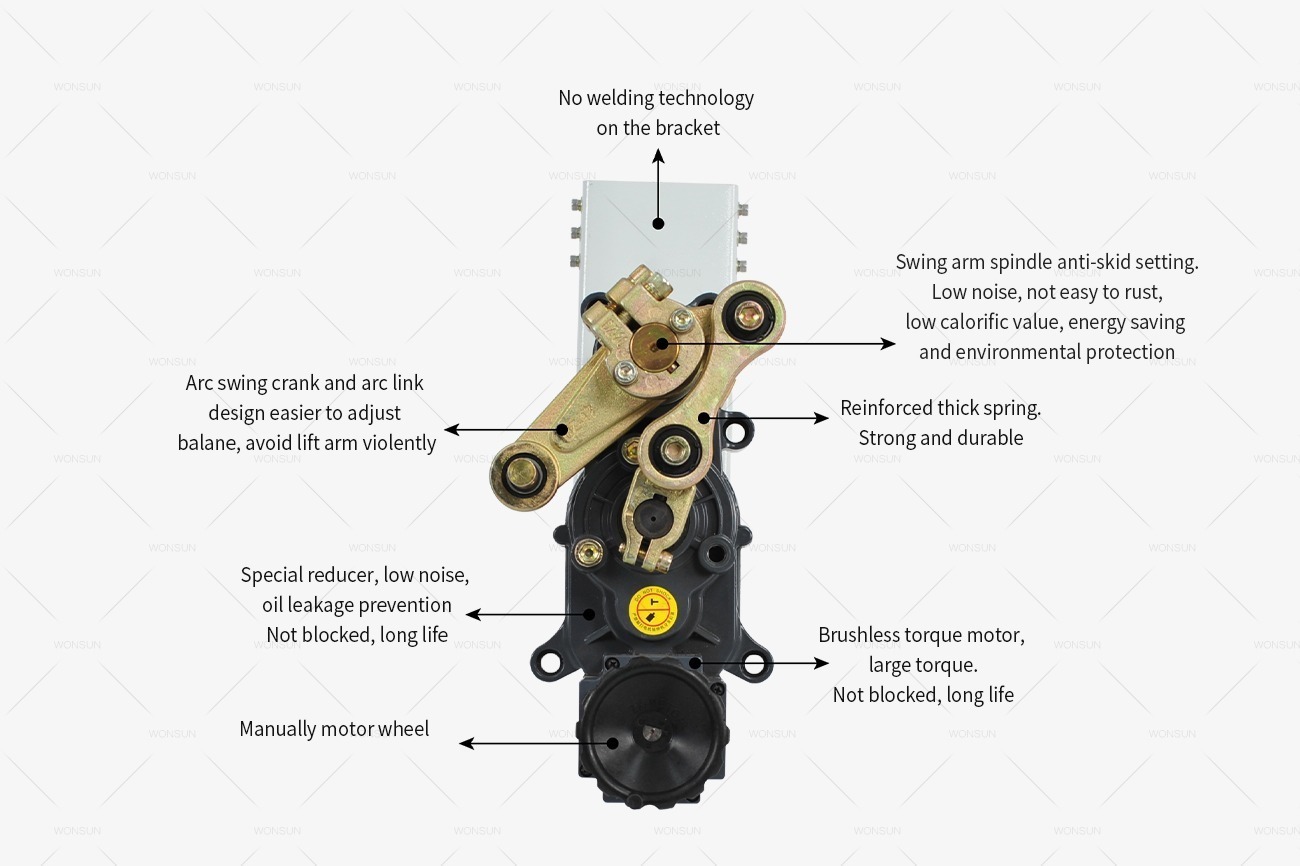

1. Advanced mechatronics Side-mounted design concept: structure compact, quick assembly, easy maintenance.
2. Molding production: high precision, fast efficiency, and guaranteed quality.
3. Advanced worm-gear three-stage transmission: high precision, long lifetime, no blocking, no oil leakage, large torque, low noise, can normally operate at the temperature of minus 35 degrees, etc.
4. DC brushless motor design: low consumption, high efficiency, no overheat, wide speed adjustment, make arm open and close fast and stable.
5. Hall limit: automatically detects the limit when power on without debugging, high precision, detecting the motor speed at all times and running at a constant speed and stable.
6. Curved triple connecting rod structure design concept, makes arm in the vertical and horizontal position, easy to adjust the arm balance, avoid to lift arm violently.
7. Arm direction quickly interchanged: interchanged according to different directions on construction site, reduce inventory and capital pressure.
8. Advanced DC brushless controller: use integrated chip drive, fast processing speed, large memory, good control effect, powerful function, high degree of automation; 24V low voltage power supply adapts to global voltage, safe and reliable.

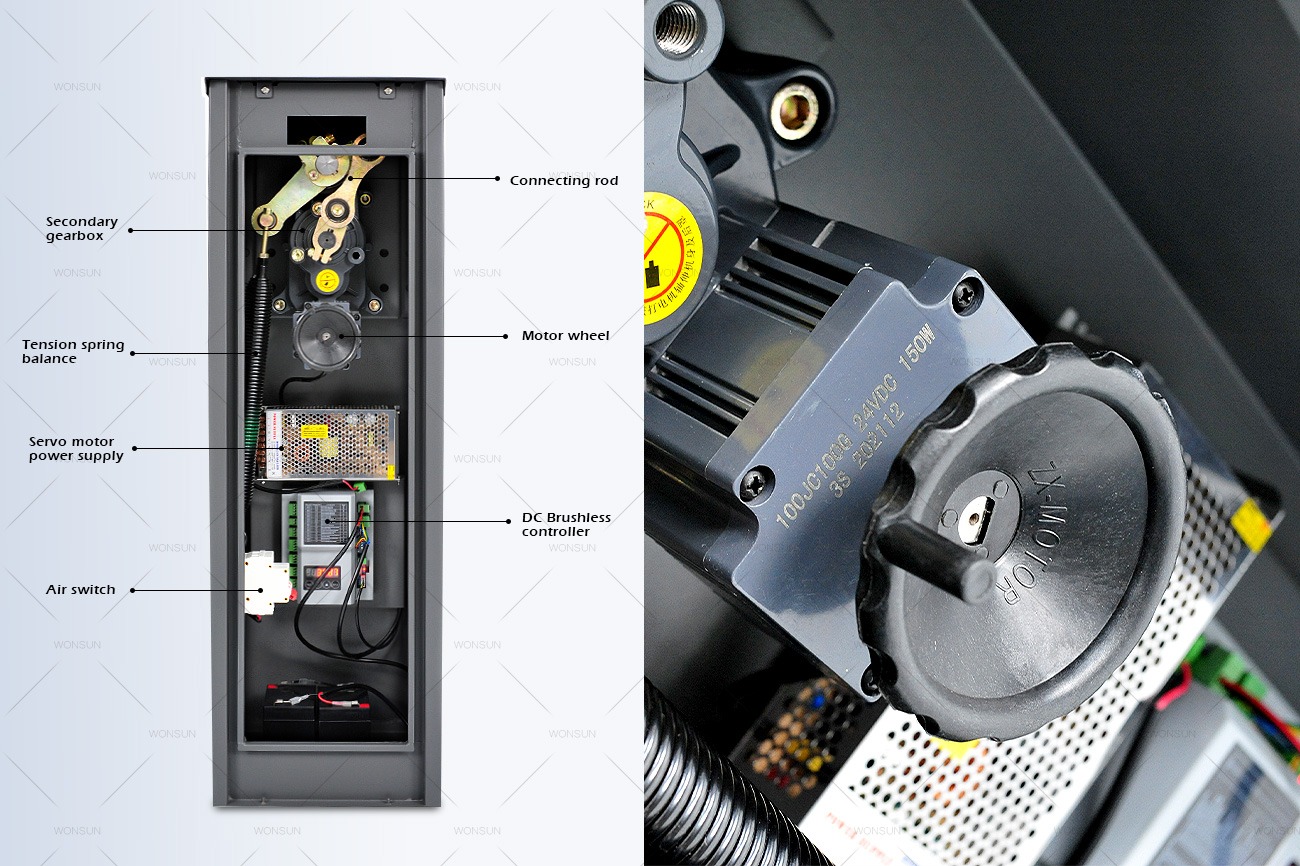

wonsun boom barrier gates internal display
wonsun boom barrier gates internal display
Boom Barrier Gates Motor Instructions
Boom Barrier Gates Motor Instructions

1. The operation speed can be adjusted(1.5sec to 6sec).
2. Arm direction can be quickly interchanged.
3. Barrier gate up &down signal relay switch output.
4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.
7. Count mode interface.
8. Arm swing-out function, when the vehicle hit the barrier gate, the arm can be swing out to avoid further damage on the vehicle and barrier machine core.
9. High-sensitivity arm auto-reverse function (intensity can be adjusted).
10. Parking system interface.
11. RS485 communication interface.
12. The backup battery interface.
13. Automatic arm lift function when power failure (need to add power storage module).

If you are a Chinese user, you can also quickly access the Wonsun Chinese website from here

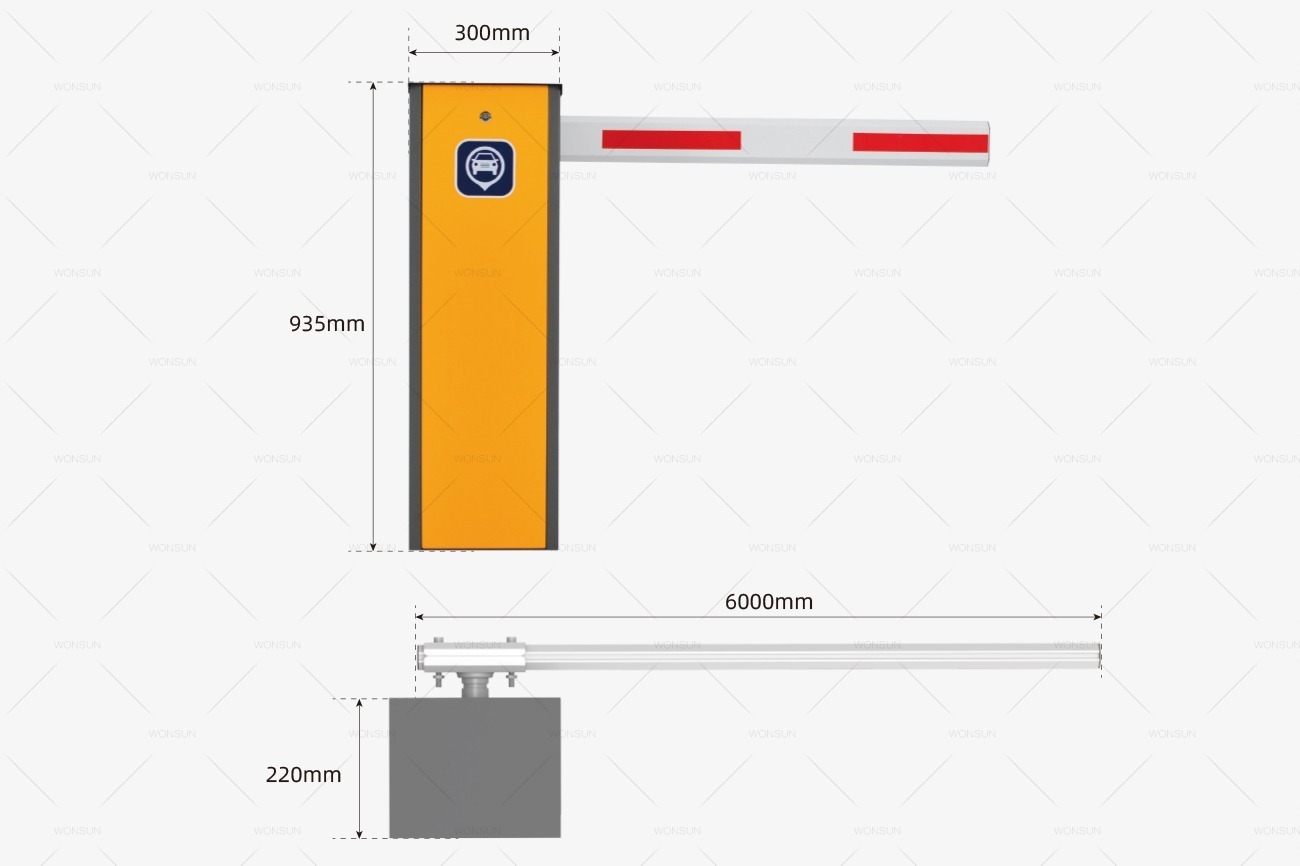

Weight 80 kg
Dimensions 150 × 50 × 50 cm
Working Temperature

-35°C~+65°C

Power Supply

DC24V

Open/close Speed

1.5Sec-6Sec

Rated Power

150W

Driving Method

DC Brushless Motor

Output Power

56.8N.m

Remote Control Distance

≤100m(open, sunny weather)

Protection Grade

IP54

Motor No - load Speed

1850r/min

Max Boom Length

6m

1 review for Wonsun Boom Barrier Gate Series with Unprecedented Power Introducing the 5th Generation DC Brushless Motor

  1. Theresa

    What is the thickness of the chassis?
