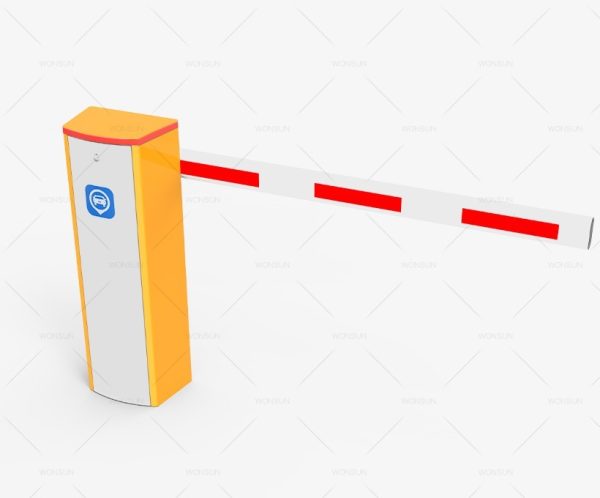

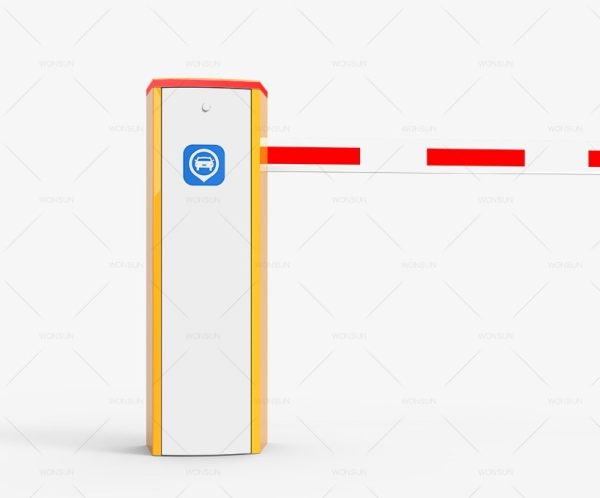

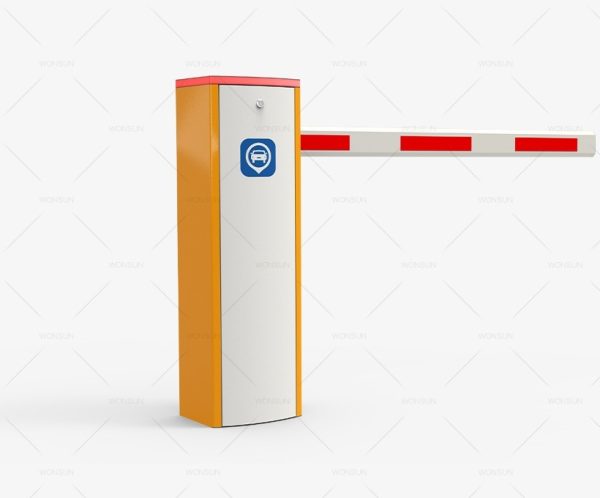

DC Brushless Customized Barrier Gate

Working Temperature-30°C~+70°C
Power SupplyDC24V
Open/close Speed1.5Sec-6Sec
Rated Power150W
Driving MethodDC Brushless Motor
Output Power56.8N.m
Remote Control Distance≤100m(open,sunny weather)
Protection GradeIP54
Motor No - load Speed1850r/min
Max Boom Length6m

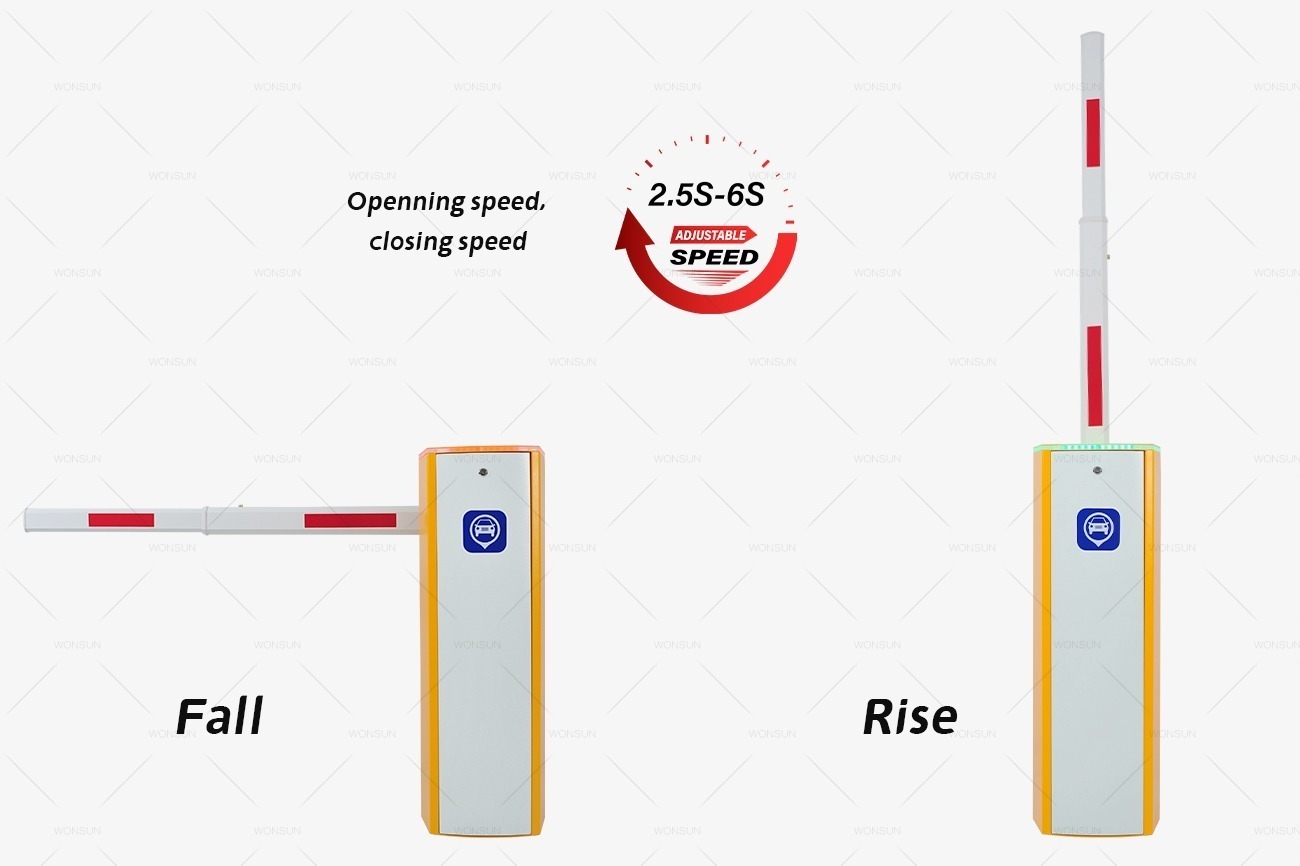

1. The operation speed can be adjusted(1.5sec to 6sec).

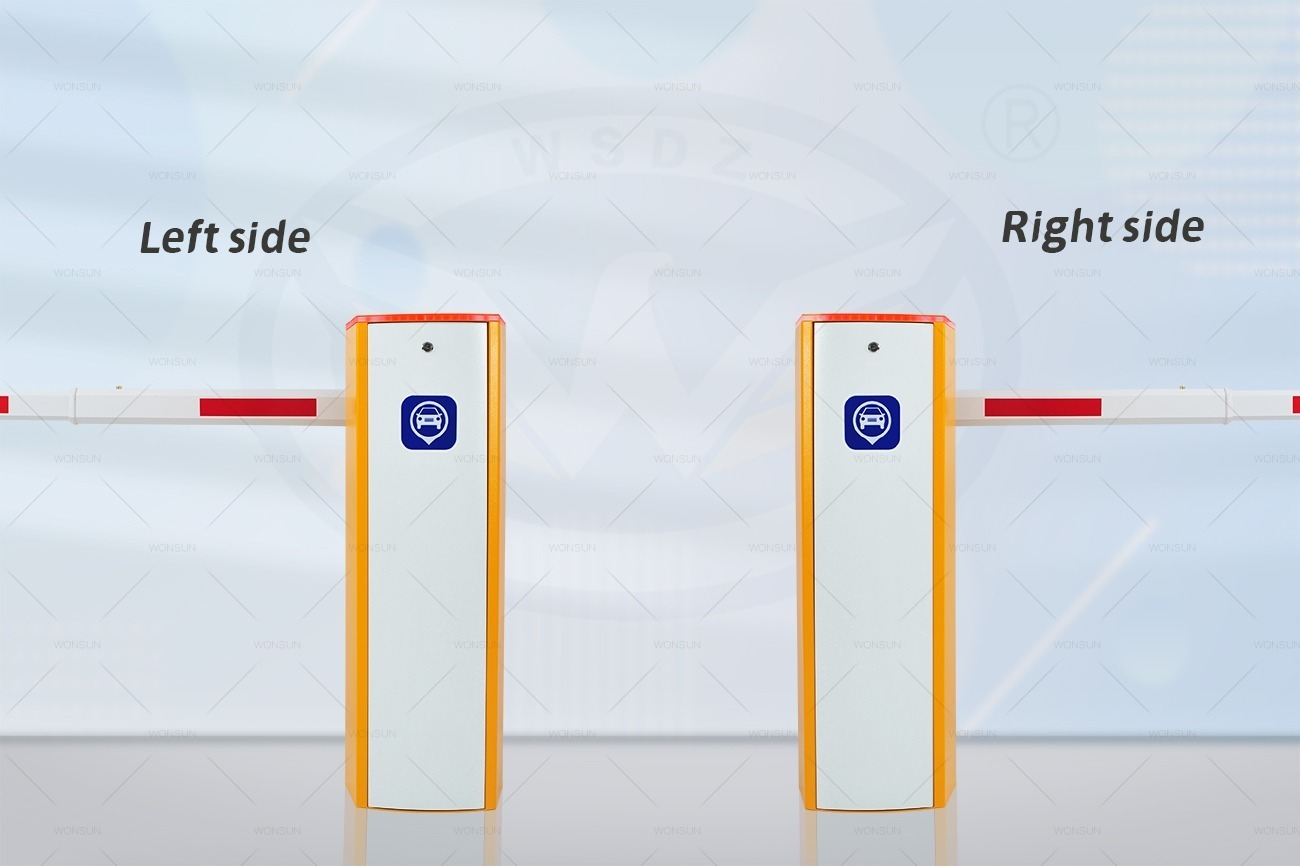

2. Arm direction can be quickly interchanged.
3. Barrier gate up &down signal relay switch output.
4. R&G Traffic light relay switch signal output.
5. External loop detector signal anti-smashing interface.
6. Infrared sensor signal anti-smashing interface.
7. Count mode interface.

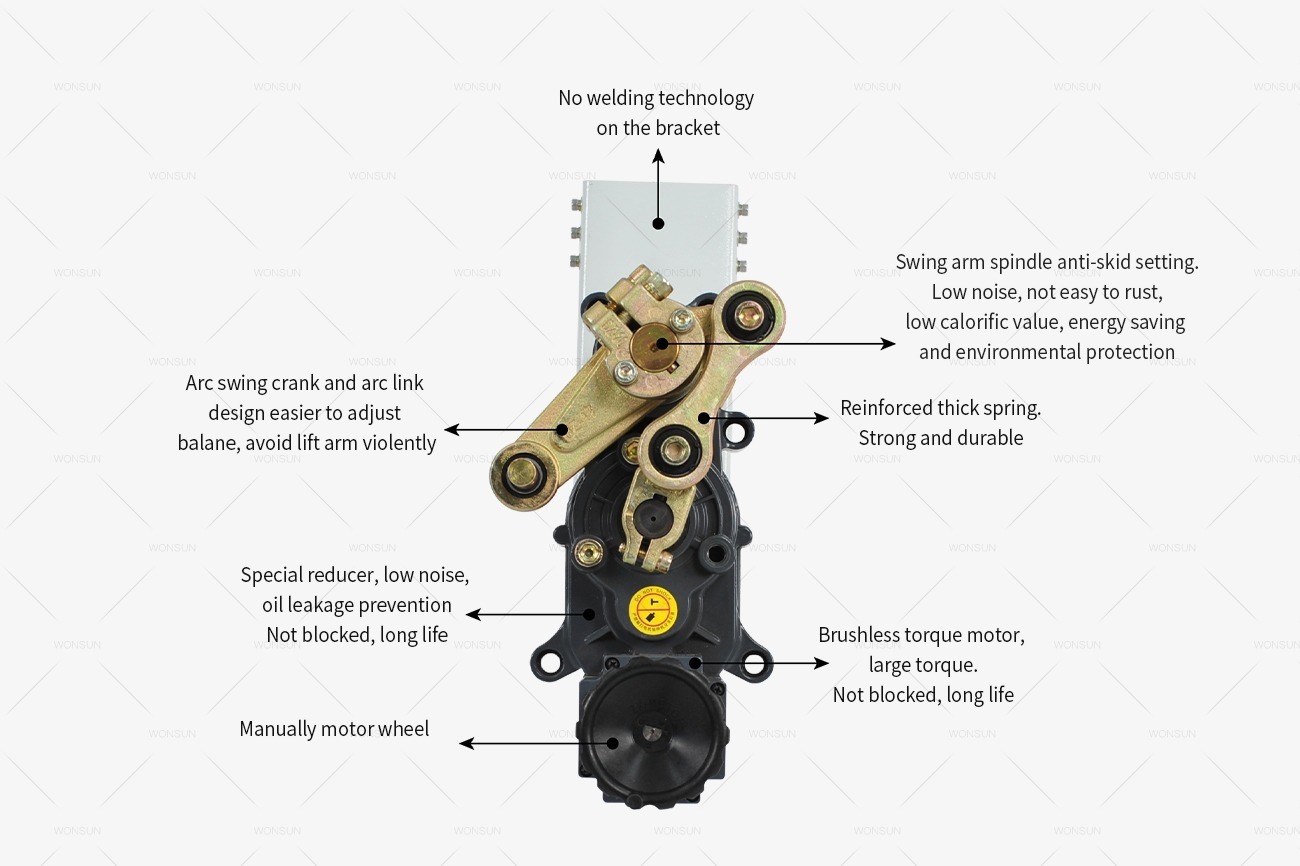

8. Arm swing-out function, when the vehicle hit the barrier gate, the arm can be swing out to avoid further damage on the vehicle and barrier machine core.
9. High-sensitivity arm auto-reverse function (intensity can be adjusted).
10. Parking system interface.
11. RS485 communication interface.
12. The backup battery interface.
13. Automatic arm lift function when power failure (need to add power storage module).
